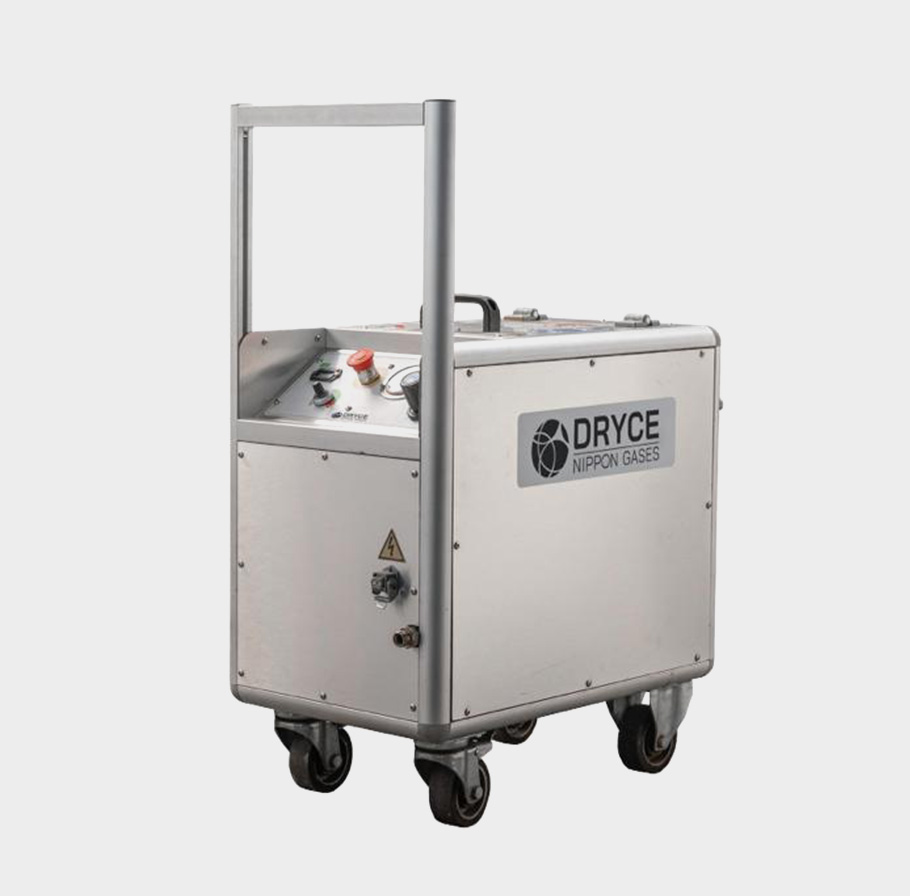

The GT Cubo Frag is particularly suited for targeted interventions where maximum precision with reduced dry ice consumption is required.
Cryogenic cleaning system designed for applications that require an extremely delicate and controlled action. The system uses fragmented dry ice pellets, obtained via an internal fragmentation device, ideal for cleaning sensitive surfaces and precision components.
Cryogenic sandblasting technology developed by Dryce, enhanced with a loader featuring an internal fragmentation system. The process allows an average output pellet size of between 1.0 and 1.2 mm to be achieved, generating a very low-aggression cleaning jet that is highly effective in removing light contaminants. Independent pressure regulation allows the process to be precisely adapted to application requirements.
The ideal solution when it is necessary to: - Remove stubborn dirt - Intervene on equipment and machinery without disassembly - Drastically reduce machine downtime The process allows surfaces and components to be restored to their original condition, directly on-site.
| Dry Ice Flow Rate | Kg/min | 0,1÷10 |
| Working Pressure | barg | 0,05÷0,15 |
| Electrical Supply Voltage | - | 230V-50Hz |
| Hopper Capacity (optional) | kg | 7 |
| External Dimensions W x D x H | (mm) | 400 x 700 x 970 |
| Weight | kg | 57 |
